Ref.: ARZO0100100000

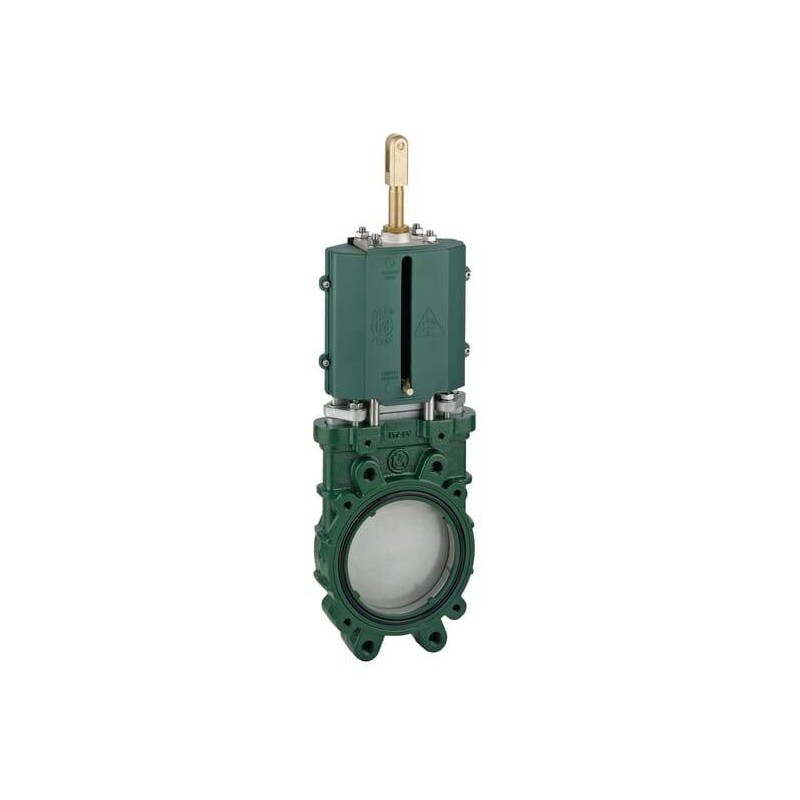

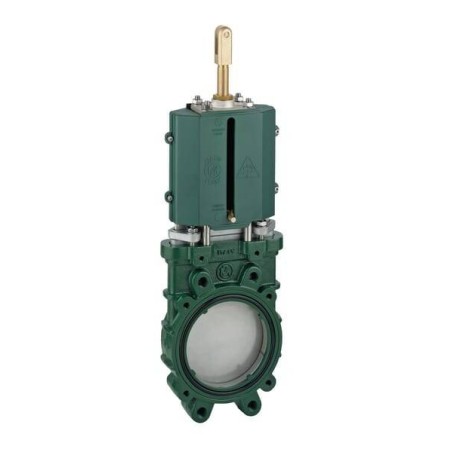

Knife gate valve 4" MZ ARZO0100100000

€544.88

(€454.07 tax excl.)

Product description

Connection type : Double flanged

Passage hole nominal diameter : 4 Inch

Housing material : Cast iron

Gate material : Stainless steel

Type of drive/steering : Hand lever

Max working pressure : 10 BAR

Water tight : Yes

Flow direction type : Uni-directional

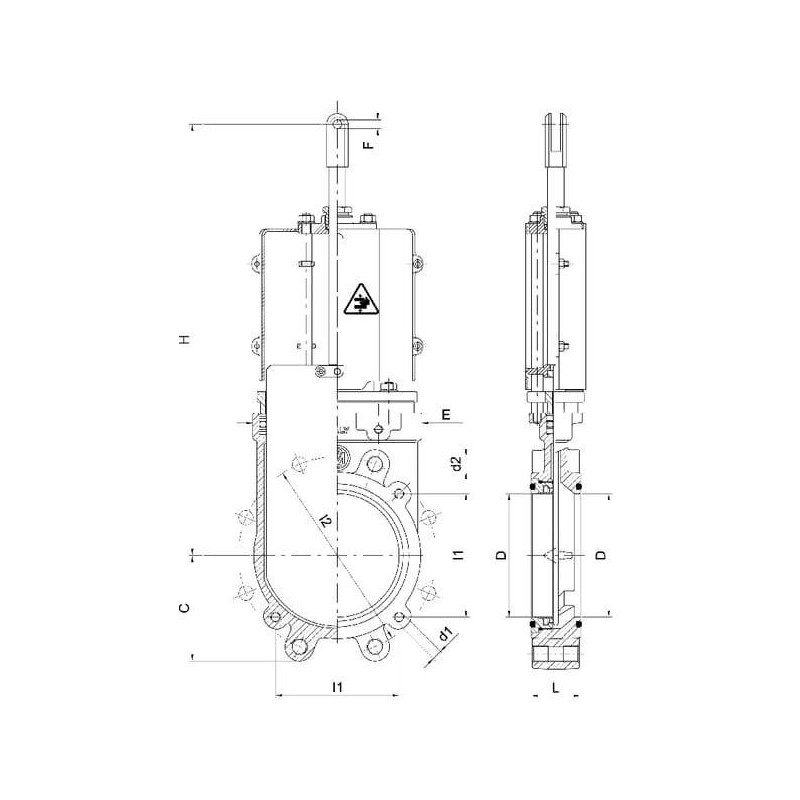

Flange mounting bolts/holes circle diameter : 180 mm

Flange mounting bolts/holes distance : 150 mm

Flange mounting bolts/holes thread diameter : M12

Flange thickness : 50 mm

Cylinder conection hole diameter : 10.5 mm

Total width : 173 mm

Passage hole centre to bottom distance : 104 mm

Passage hole centre to lever hole vertical distance : 430 mm

Lever mounting holes distance (vertical) : 63 mm

Information	Aftermarket
Brand	MZ
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
