Ref.: BL446

Leaf Chain Rexnord REX BL446

€77.84

(€64.87 tax excl.)

Product description

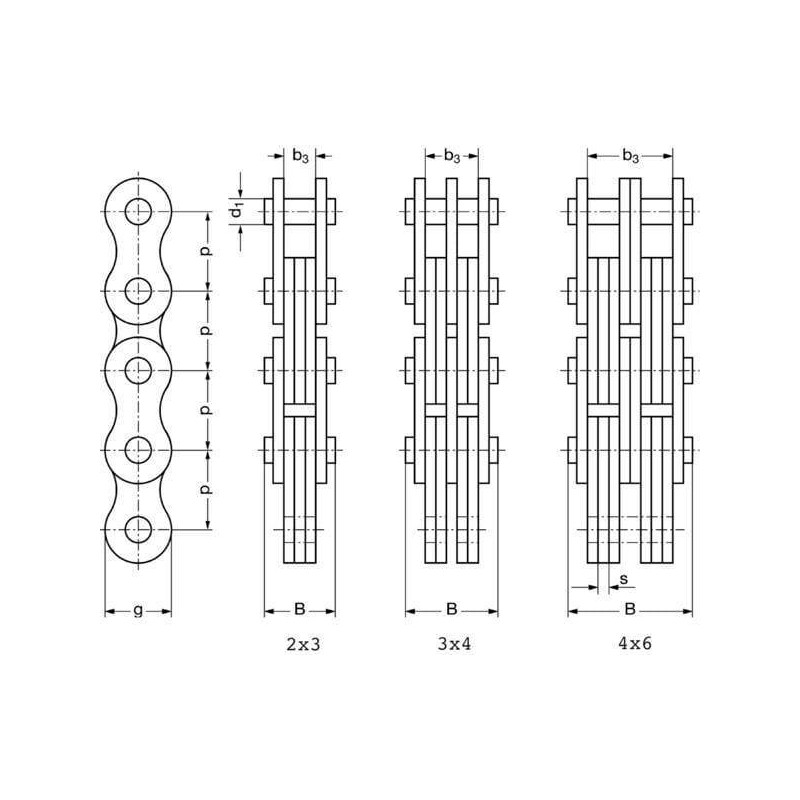

Chain combination : 4x6

Pitch : 12.7 mm

Pin diameter : 5.09 mm

Max. loading : 4.4 t

Height : 12.07 mm

Width inside : 16.8 mm

Width outside : 23.8 mm

Thickness inner plate : 2 mm

Min. breaking load according to standard : 44400 N

DIN standard : 8188

Information	Aftermarket
Brand	REX-PRO
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.
