Ref.: SE342335

Chain tine UNIVERSAL SIMPLEX SE342335 23

€48.97

(€40.81 tax excl.)

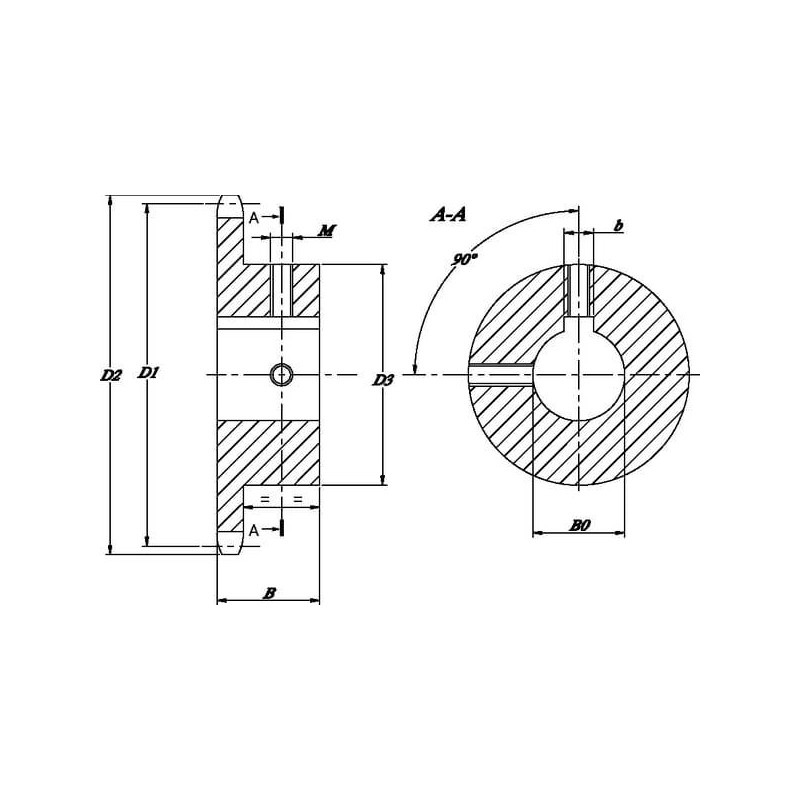

Product description

Type : Simplex

Chain type : 12 B-1

number tine : 23

Consists of : - pinion
- 2 adjustment screws

Pitch diameter : 139,9 mm

diameter outer : 148,1 mm

baler tine : 11,1 mm

baler : 40 mm

type hub : hub single shoulder

diameter hub : 90 mm

Bore : Oui

Material : C45 steel

Tooth hardness : HRC 45-55

baler key : 10 mm

Thread diameter (locking) : M8

Information	Aftermarket
Brand	UNIVERSEL
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
