Ref.: SD51003

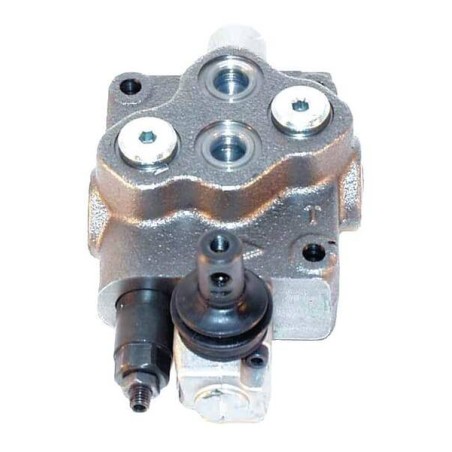

Control valve SD5/1-N-111L-AET WALVOIL SD51003

€176.60

(€147.17 tax excl.)

Product description

Max. flow rate : 45 l/min

Number of sections : 1

Type : Monobloc

Type actuation : Hand operated

Spools and detends code : 1-11

Spools and detends description : 1x double-acting detent in all positions

Outlet port option : Open centre

Pressure port P - Thread diameter : 3/8 Inch

Pressure port P - Thread type : BSP

Workports thread diameter : 3/8 Inch

Workports thread type : BSP

Tank port T - Thread diameter : 3/8 Inch

Tank port T - Thread type : BSP

Valve series : SD5

Model code : SD5/1-N(KG3-120)/111L

Max working pressure : 315 BAR

Pressure range relief valve : 63-200 BAR

Max return line pressure : 25 BAR

Adjustment type : Socket screw

Sealing material : Nitrile rubber [NBR]

Max. leakage : 3 cm³/min

Information	Aftermarket
Brand	WALVOIL
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
