Ref.: 6512814

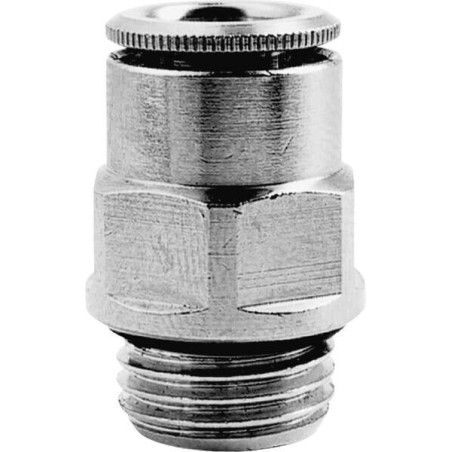

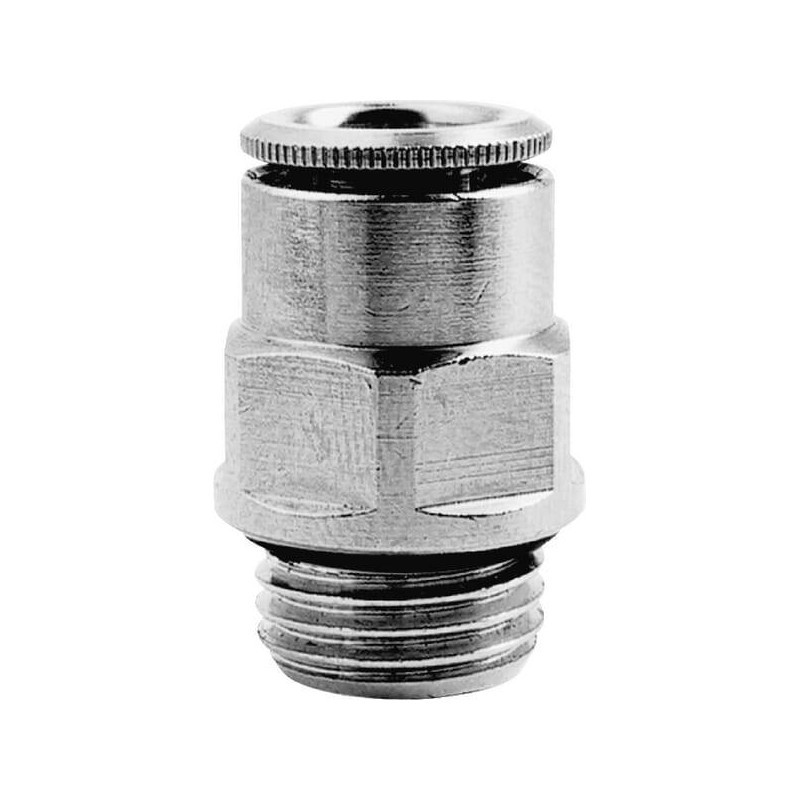

Push-in fitting CAMOZZI 6512814

€3.60

(€3.00 tax excl.)

Product description

Shape : Straight

Connection no 1 type : Thread

Connection no 1 type - male/female : Male

Connection no 1 length : 7 mm

Connection no 1 thread diameter : 1/4 Inch

Connection no 1 threads per inch : 19

Connection no 1 thread length : 7 mm

Connection no 1 thread type : BSP

Connection no 1 hex size : 6 mm

Connection 2 type : Quick coupling

Connection 2 type - male/female : Female

Connection 2 diameter : 13.7 mm

Connection 2 thread type : n/a

Connection 2 wrench size : 15.0 mm

Pipe diameter : 8 mm

Total length : 24.5 mm

Total width : 16.4 mm

Max working pressure : 15 BAR

Max working temperature : 80 °C

Min. working temperature : -20 °C

Information	Aftermarket
Brand	CAMOZZI
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
