Ref.: 65226M5

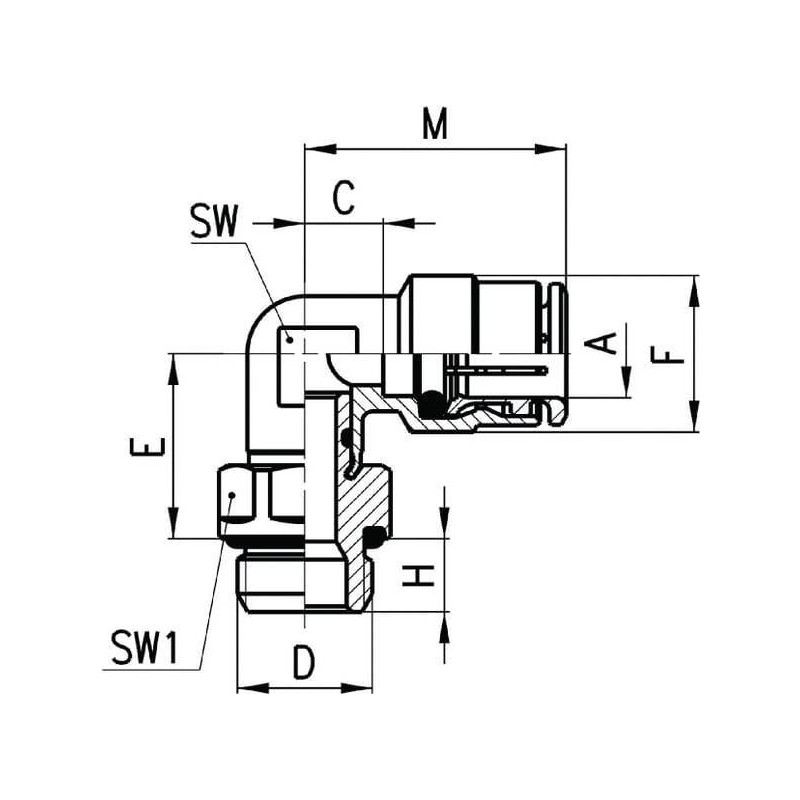

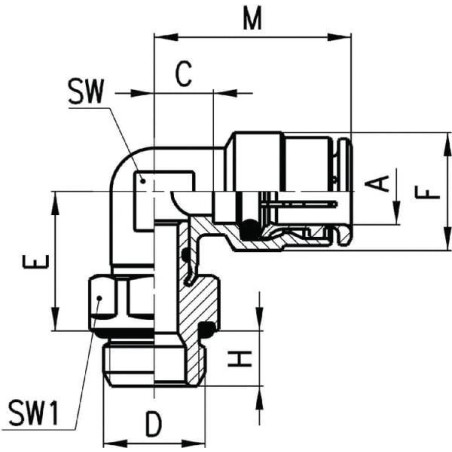

Push-in fitting CAMOZZI 65226M5

€6.12

(€5.10 tax excl.)

Product description

Shape : Elbow

Connection no 1 type : Thread

Connection no 1 type - male/female : Male

Connection no 1 length : 4 mm

Connection no 1 thread diameter : M5

Connection no 1 thread pitch : 1.00 mm

Connection no 1 thread type : Metric

Connection no 1 hex size : 9 mm

Connection no 1 wrench size : 10.0 mm

Connection 2 type : Quick coupling

Connection 2 type - male/female : Female

Connection 2 diameter : 12.7 mm

Connection 2 thread type : n/a

Connection 2 centre to end distance : 13 mm

Connections distance : 20 mm

Connection centre to insert distance : 4 mm

Pipe diameter : 6 mm

Angle : 90 deg

Max working pressure : 15 BAR

Max working temperature : 80 °C

Min. working temperature : -20 °C

Information	Aftermarket
Brand	CAMOZZI
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.
