Ref.: 6522814

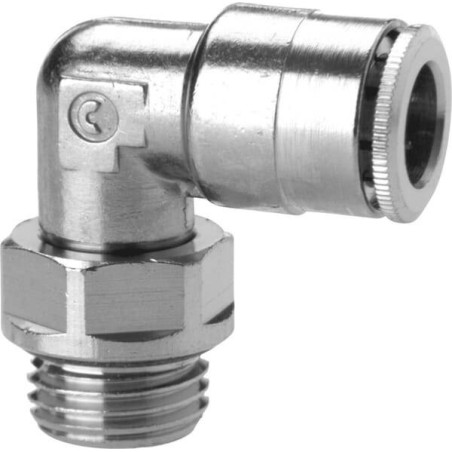

Push-in fitting CAMOZZI 6522814

€6.72

(€5.60 tax excl.)

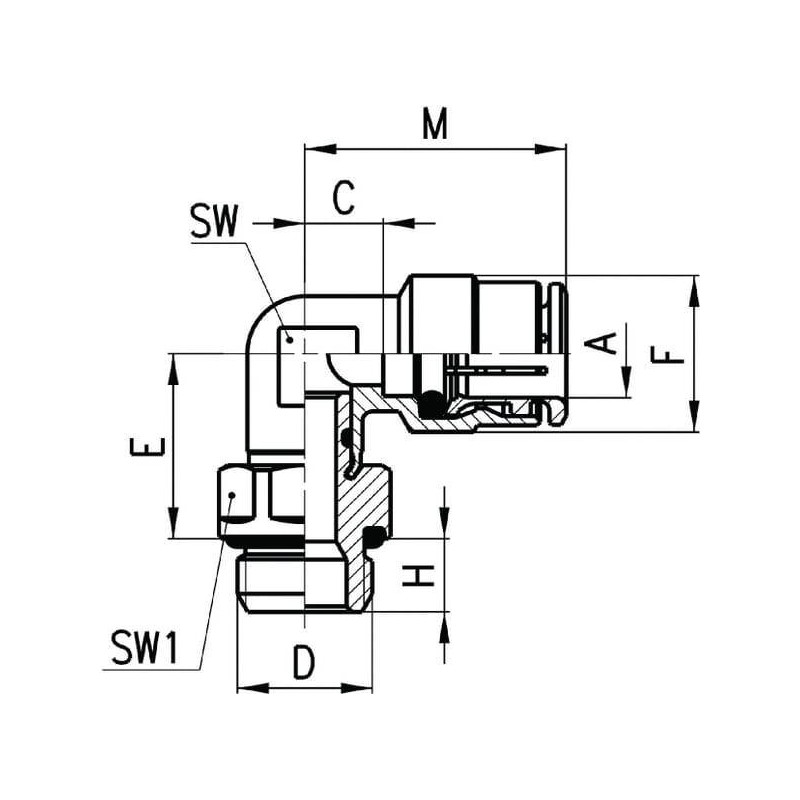

Product description

Shape : Elbow

Connection no 1 type : Thread

Connection no 1 type - male/female : Male

Connection no 1 length : 7 mm

Connection no 1 thread diameter : 1/4 Inch

Connection no 1 threads per inch : 19

Connection no 1 thread type : BSPT

Connection no 1 hex size : 11 mm

Connection no 1 wrench size : 15.0 mm

Connection 2 type : Quick coupling

Connection 2 type - male/female : Female

Connection 2 diameter : 14.2 mm

Connection 2 thread type : n/a

Connection 2 centre to end distance : 17 mm

Connections distance : 22.5 mm

Connection centre to insert distance : 5 mm

Pipe diameter : 8 mm

Angle : 90 deg

Max working pressure : 15 BAR

Max working temperature : 80 °C

Min. working temperature : -20 °C

Information	Aftermarket
Brand	CAMOZZI
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
