Ref.: 64634M5

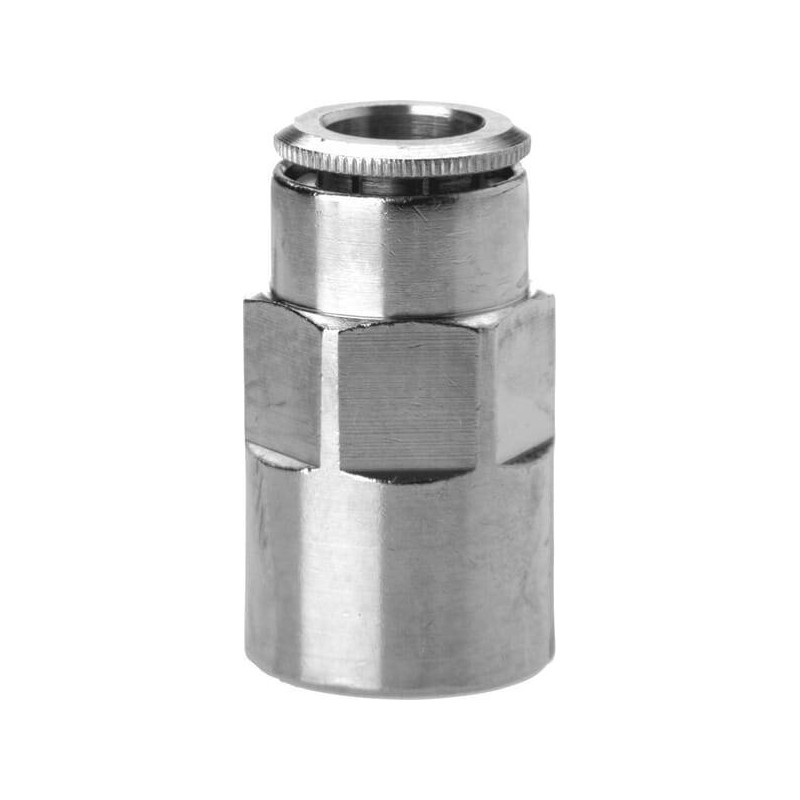

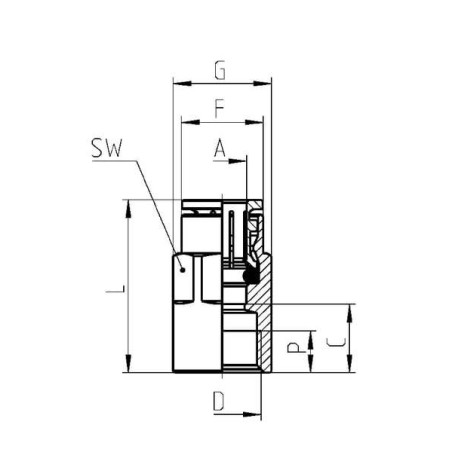

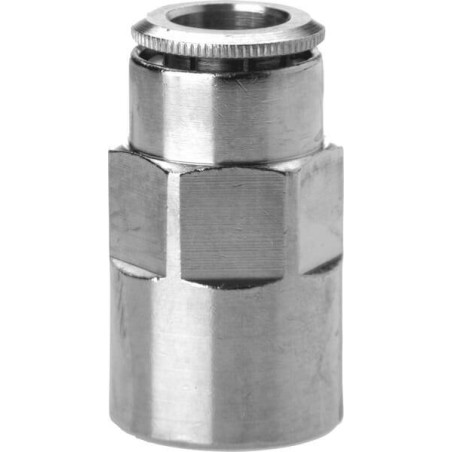

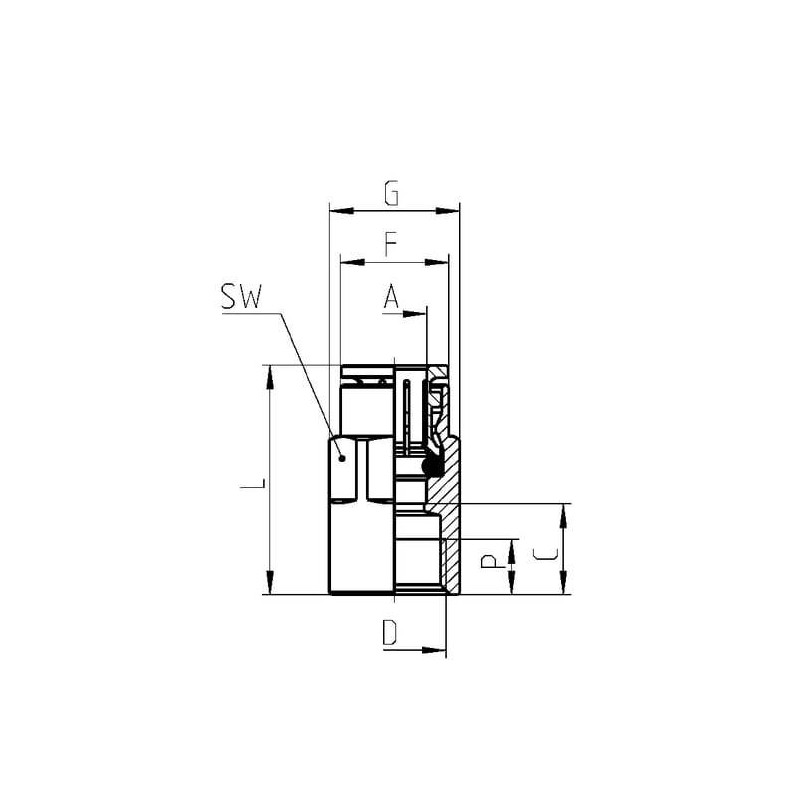

Push-in fitting CAMOZZI 64634M5

€4.40

(€3.67 tax excl.)

Product description

Shape : Straight

Connection no 1 type : Thread

Connection no 1 type - male/female : Female

Connection no 1 thread diameter : M5

Connection no 1 thread length : 4.5 mm

Connection no 1 thread pitch : 1.00 mm

Connection no 1 thread type : Metric

Connection no 1 wrench size : 9.0 mm

Connection no 1 center to end distance : 6.5 mm

Connection 2 type : Push-in

Connection 2 type - male/female : Female

Connection 2 diameter : 4 mm

Pipe diameter : 4 mm

Flange outside diameter : 7.8 mm

Outside diameter : 8.8 mm

Length : 20.5 mm

Max working pressure : 15 BAR

Max working temperature : 80 °C

Min. working temperature : -20 °C

Information	Aftermarket
Brand	CAMOZZI
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.
