Ref.: M12FA550MS4

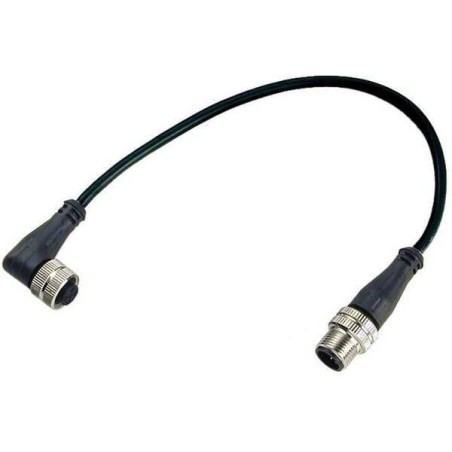

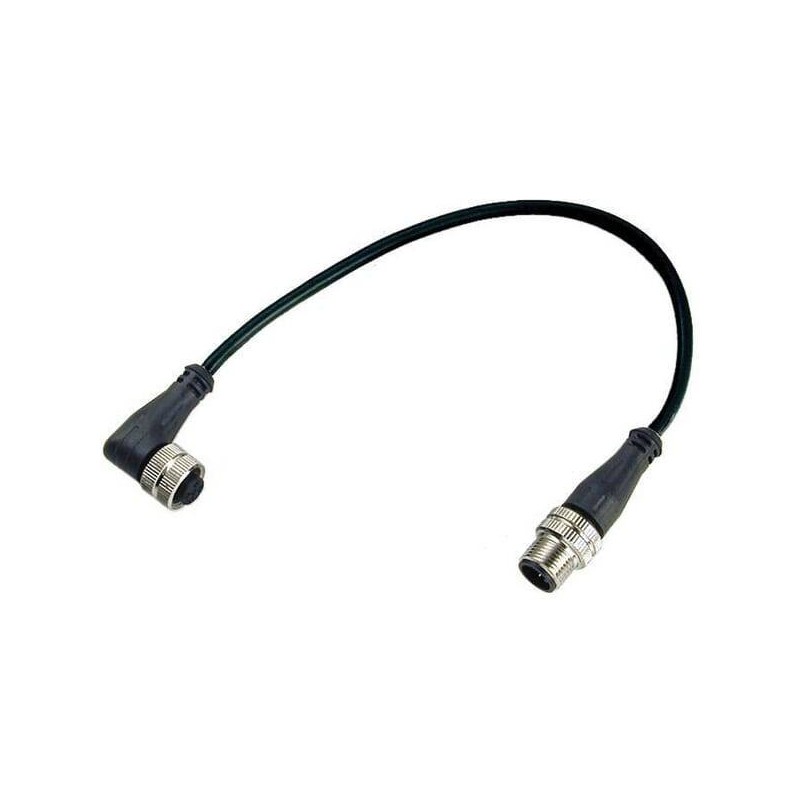

Extension cable OMAL M12FA550MS4

€48.85

(€40.71 tax excl.)

Product description

Nominal voltage : 60 V

Max voltage : 60 V

Voltage type : AC DC

Operating current : 4 A

Max. current : 4 A

Cable core cross section : 0.34 mm²

Cable outer sheath material : Polyurethane

Number of cable cores : 4

Length : 5000 mm

Connection type male/female - connection no 1 : Female

Connection thread diameter : M12

Cable position type - connection no 1 : Angled

Number of poles : 5

Connection 2 connection type : Threaded

Connection 2 connection type male/female : Male

Connection thread diameter - connection no 2 : M12

Cable position type - connection no 2 : Straight

Number of poles - connection no 2 : 4

Housing colour : Black

Contact surface material : Brass'Gold

Protection class IP : 67

Min working temperature : -25 °C

Max working temperature : 90 °C

Series : n/a

Total length with cable : 5 m

Information	Aftermarket
Brand	OMAL
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
