Ref.: DILEM01G

Contactor DILEM01G EATON DILEM01G

€93.72

(€78.10 tax excl.)

Product description

Rated control supply voltage Us at AC 50HZ : 0.0-0.0 V

Rated control supply voltage Us at AC 60HZ : 0.0-0.0 V

Rated control supply voltage Us at DC : 24.0-24.0 V

Voltage type : DC

Number of normally closed contacts as main contact : 0

Number of normally open contacts as main contact : 3

Type of electrical connection of main circuit : Screw connection

Operating voltage AC 50 Hz : 24-24 V

Operating voltage AC 60 Hz : 24.0-690.0 V

Rated operating current (Ie) at AC-1 400 V : 22 A

Rated operating current (Ie) at AC-3 400 V : 9 A

Rated operation power at AC-3 400 V : 4 kW

Rated operation current Ie at AC-4 400 V : 6.6 A

Rated operation power at AC-4 400 V : 3 kW

Rated operation power NEMA : 3.7 kW

Number of auxiliary contacts as normally open contact : 0

Number of auxiliary contacts as normally closed contact : 1

Modular version : No

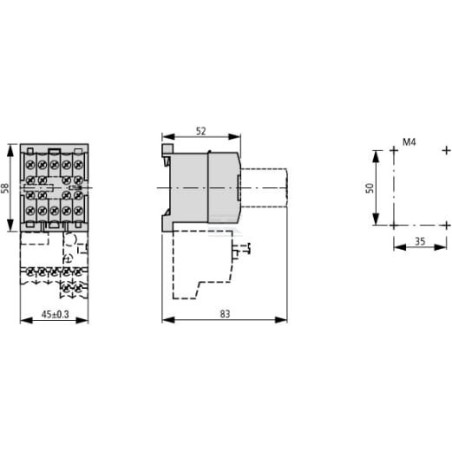

Width : 45 mm

Height : 58 mm

Depth : 54 mm

Manufacturer Product ID : 010343

Information	Aftermarket
Brand	EATON
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
