Ref.: BD414

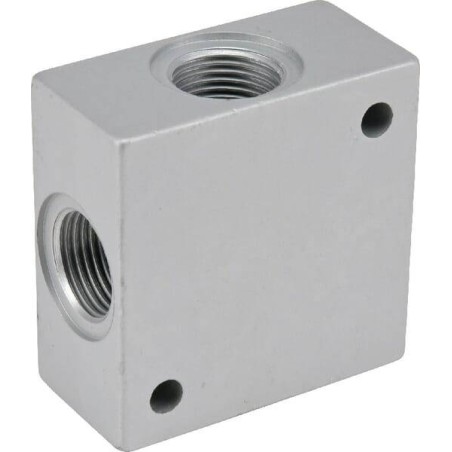

Distributor block 4-fold G1/4 UNIVERSAL BD414

€14.56

(€12.13 tax excl.)

Product description

Number of single outlets : 0

Number of double outlets : 0

Connection no 1 thread diameter : 1/4 Inch

Body material : Aluminium

Min. working pressure : 1 BAR

Max working pressure : 10 BAR

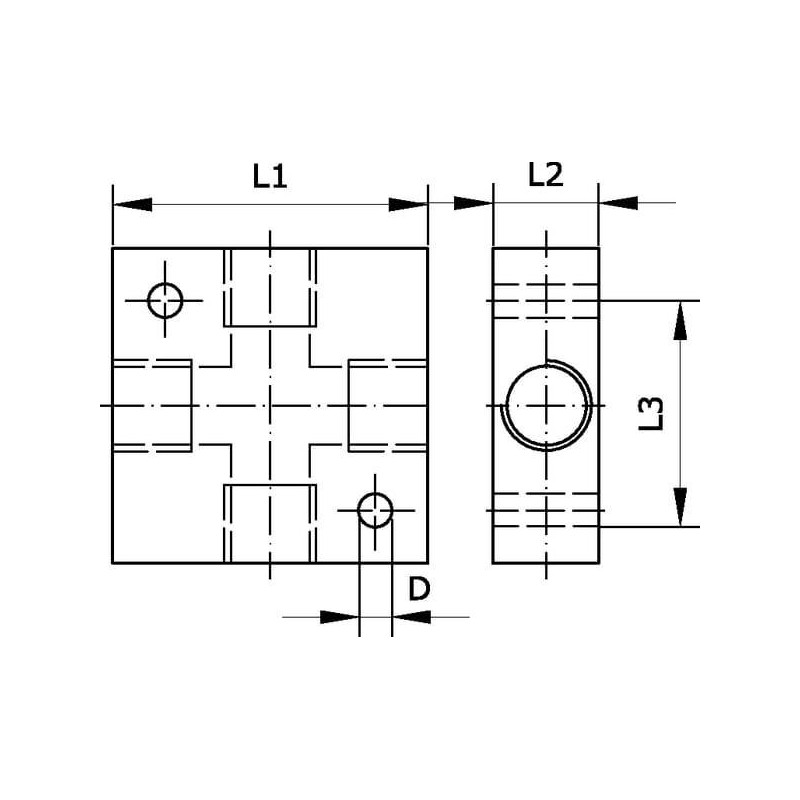

Total length : 40 mm

Mounting holes diameter : 5.5 mm

Nominal diameter : 11 mm

Center to center mounting holes distance : 20 mm

Connections distance - long : 26 mm

Information	Aftermarket
Brand	UNIVERSEL
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
