Ref.: SYF45FM

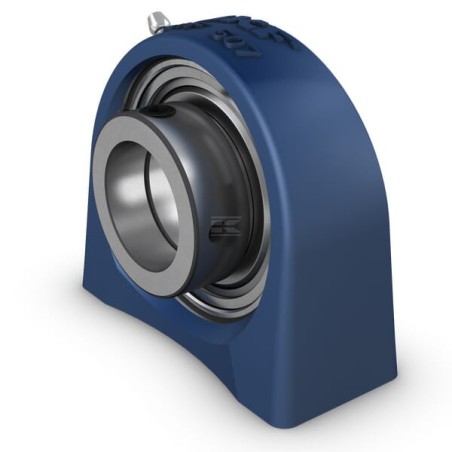

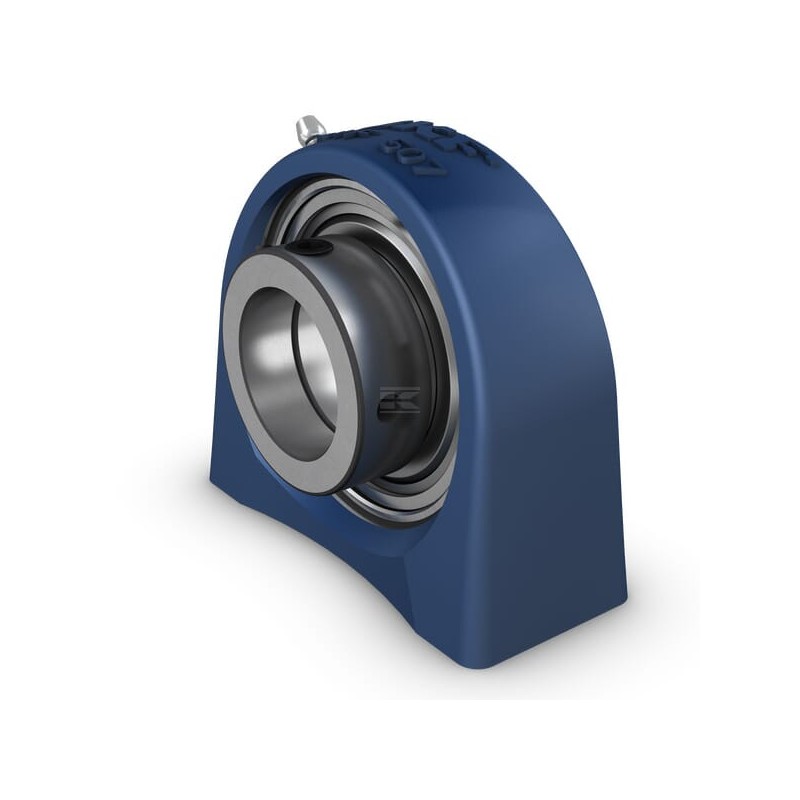

Housing unit SKF SYF45FM

€134.14

(€111.78 tax excl.)

Product description

Housing type : Pillow block - short

Bearing inside diameter : 45 mm

Consists of : - Bearing block
- Clamp ring

Total length : 120 mm

Outside diameter : 120 mm

Housing width : 43.7 mm

Total height : 107.5 mm

Limiting speed : 71.7 r/s

Bore type : Cylindrical

Total width : 56.7 mm

Bearing inner ring width : 43.7 mm

Shaft vertical distance : 54 mm

Mounting holes distance : 95.3 mm

Bearing balls distance to mounting surface : 32.7 mm

Number of mounting holes : 2

Housing material : Cast iron

Bearing material : Steel

Basic radial load static : 21600 N

Basic radial load dynamic : 33200 N

Original number equivalent : SYF45FM

Regreasable : Yes

Information	Aftermarket
Brand	SKF
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
