Ref.: CF40PN

Clevis foot UNIVERSAL CF40PN

€52.04

(€43.37 tax excl.)

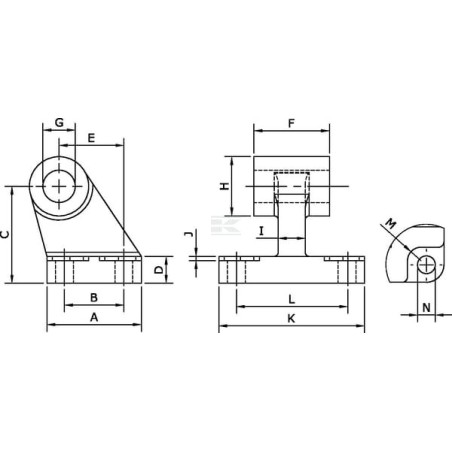

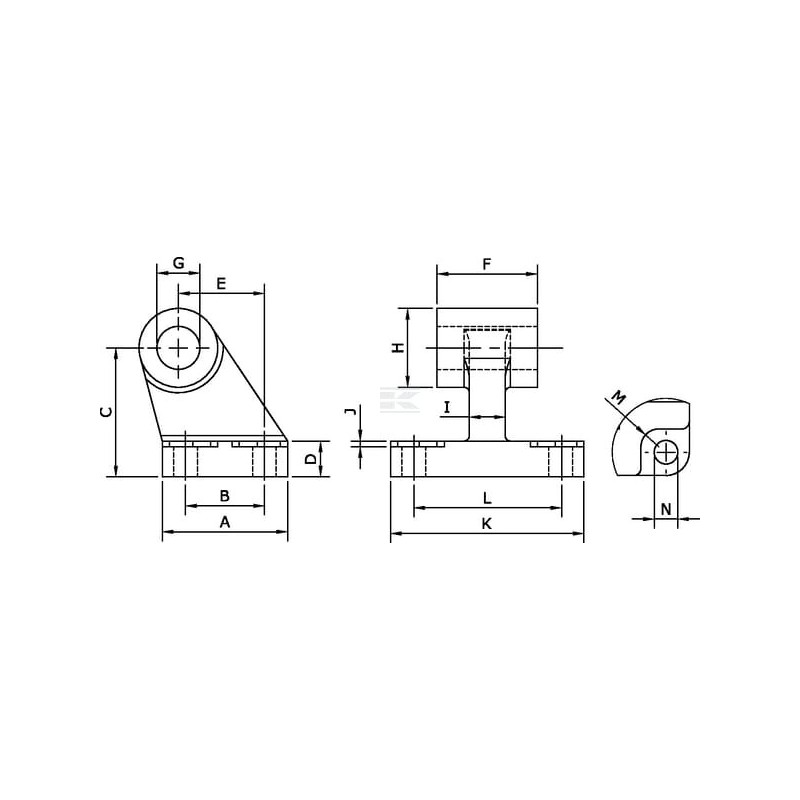

Product description

Bore diameter : 6.6 H13 mm

Center bore : 12 H9 mm

Center hole distance : 36 mm

Distance for locating holes : 22 mm

Diameter H : diameter 22 max mm

For cylinder : DIN ISO 21287 UNITOP DIN ISO 15552

Height D : 10 mm

Hole center distance : 24 mm

Length A : 35 mm

Length F : 28 mm

Length I : 15 mm

Length K : 54 mm

L : 41 mm

Material : Aluminium

Cylinder diameter : 40 mm

Nose radius : 11 H13 mm

Thickness : 1.6 max mm

Information	Aftermarket
Brand	UNIVERSEL
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
