Ref.: FAZC61

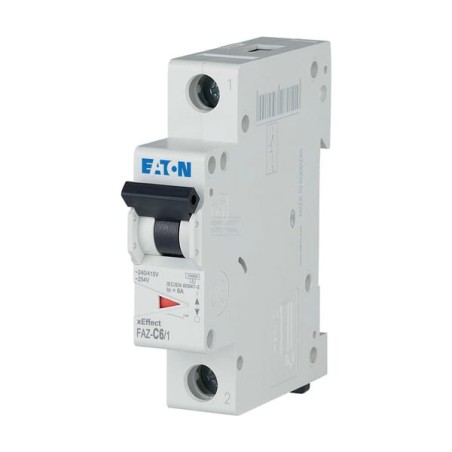

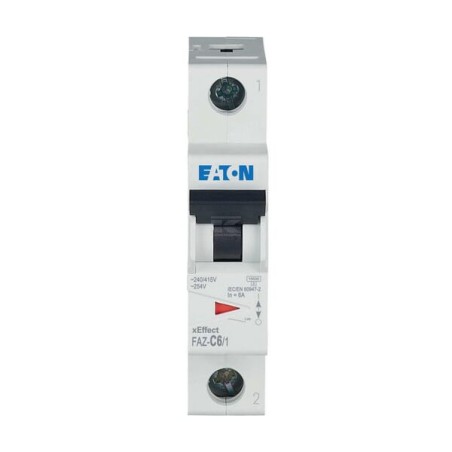

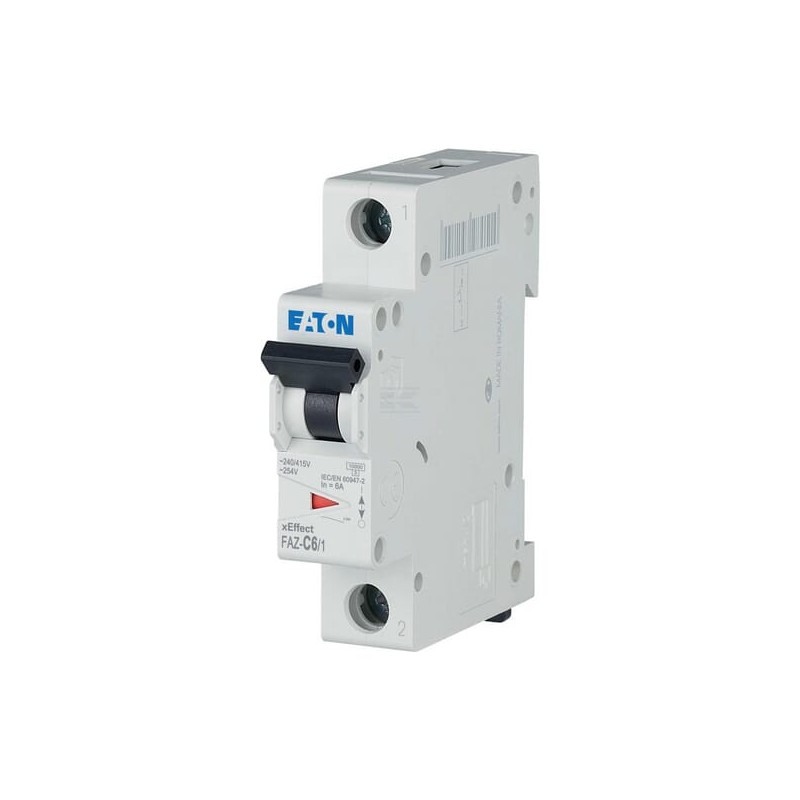

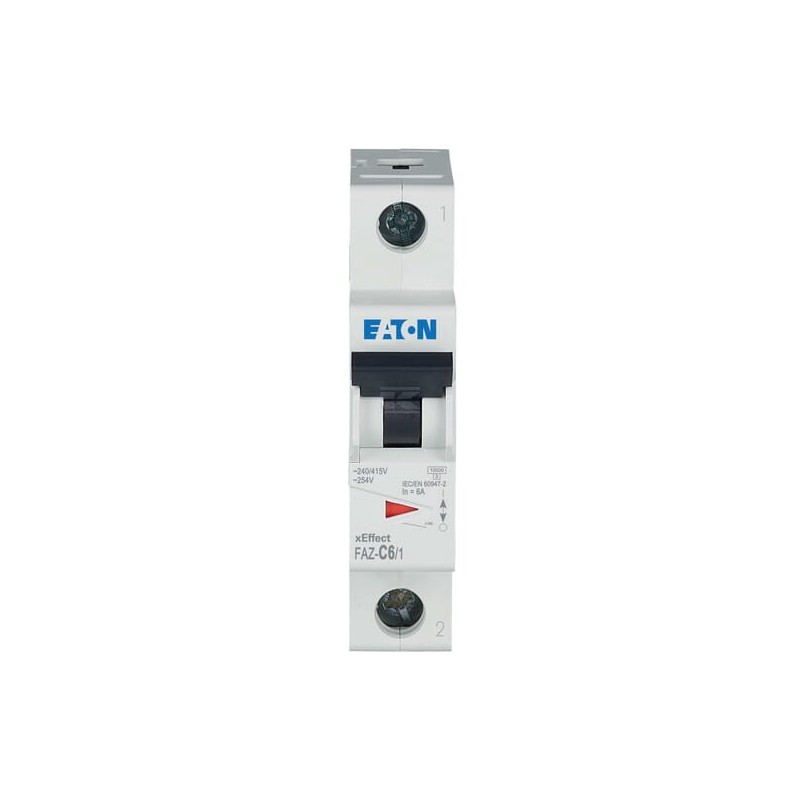

Miniature circuit-breaker EATON FAZC61

€70.43

(€58.69 tax excl.)

Product description

Additional equipment possible : Yes

Ambient temperature during operating : -25.0 °C

Built-in depth : 70.5 mm

Concurrently switching neutral conductor : No

Connectable conductor cross section multi-wired : 1.0-25.0 mm²

Connectable conductor cross section solid-core : 1.0-25.0 mm²

Current limiting class : 3

Insulation class : 20

Explosion-proof : No

Flush-mounted installation : No

Frequency : 50.0-60.0 Hz

Number of poles : 1

Number of protected poles : 1

Over voltage category : 3

Pollution degree : 2

Rated current : 6 A

Rated impulse withstand voltage Uimp : 4 V

Rated insulation voltage Ui : 440 V

Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V : 10 kA

Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V : 10 kA

Rated short-circuit breaking capacityat 230 V : 15 kA

Rated short-circuit breaking capacityat 400 V : 15 kA

Rated voltage : 230 V

Release characteristic : C

Voltage type : AC

Width in number of modular spacings (mm) : 1 mm

Manufacturer Product ID : 278555

Information	Aftermarket
Brand	EATON
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.

Check that your machine is compatible

Oops, no compatibility information available for your equipment

Please contact our customer support to check the compatibility of this product with your model.
