Ref.: DAB05111

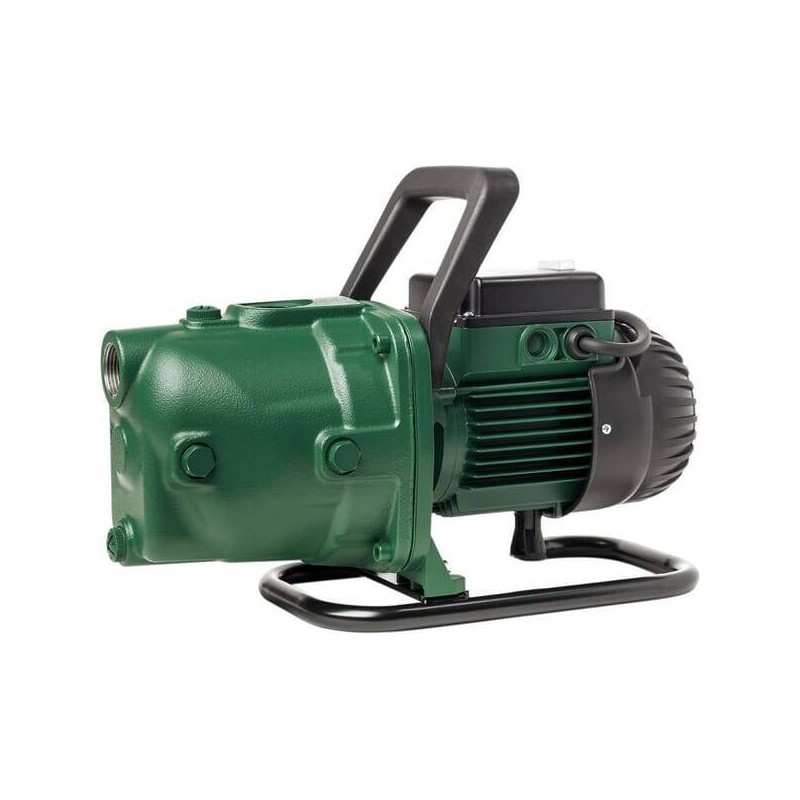

Pump centrifugal DAB PUMPS DAB05111

€349.55

(€291.29 tax excl.)

Product description

Max. volume flow : 3.6 m³/h

height delivery max : 53,8 m

Nominal volume flow : 2.6 m³/h

Minimum average temperature (continuous) : 0 °C

Max. average temperature (continuous) : 40 °C

Index of protection (IP) : 44

Insulation class in accordance with IEC standard : F

Nominal voltage : 220-240 V

frequency : 50 Hz

contacter electric motor : 1.1 kW

contacter motor : 0.75 kW

rated current : 5,1 A

Speed of rotation : min

material housing : Fonte

Suction-side connection thread diameter : 1 Inch

Type of connection thread on suction side : BSPP

Thread diameter of discharge-side connection : 1 Inch

Total length : 414 mm

baler fur : 178 mm

Original reference : 60212516H

with pressurised tank : Non

height flange delivery : 201 mm

height of suction side (h3) : 144 mm

delivery/suction centre length (a) : 108 mm

Type of training : electric

With automatic start/stop : Non

Manufacturer Product ID : 102652020H

Information	Aftermarket
Brand	DAB PUMPS
This product is adaptable, which means that it can be adapted to the models of the manufacturers specified above, non-exhaustive list.
